MICROCONTROLLER

Definition

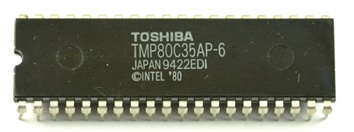

A MICROCONTROLLER (often abbreviated MCU) is a complete system on a single chip that integrates: CPU, non-volatile memory (for firmware), volatile memory (for temporary data), and a wide set of INPUT/OUTPUT peripherals. Unlike a classic CPU or MICROPROCESSOR (often abbreviated MPU), which typically require external memories and peripherals to form a working system, a MICROCONTROLLER is designed to be “stand-alone” and directly control sensors, actuators, and interfaces, with reduced cost, power consumption, and board space.

Key concept: a “miniature computer”

A MICROCONTROLLER combines on one die what an MPU-based system spreads across multiple components:

• CPU: executes instructions and handles interrupts and control flow.

• Permanent (non-volatile) memory: typically FLASH or ROM, stores the firmware.

• Volatile memory: typically RAM, stores variables, stack, and runtime buffers.

• INPUT/OUTPUT: GPIO lines and integrated peripherals (timers, serial interfaces, analog conversion, etc.).

This makes an MCU ideal for control, automation, and acquisition tasks.

Typical internal architecture

Inside a typical MCU you almost always find:

• Clock and reset: internal/external oscillator, PLL (on many families), reset circuits and watchdog.

• Internal buses: interconnect CPU, memories, and peripherals (often with priority/arbitration).

• Interrupt controller: manages asynchronous events (timer, pin, serial, ADC, etc.).

• Digital peripherals: TIMER, PWM, counters, capture/compare.

• Communication peripherals: UART, SPI, I2C, sometimes CAN, USB, ETHERNET (depending on class).

• Analog peripherals (if present): ADC, DAC, comparators, internal references.

• Power management: sleep/deep sleep, clock gating, supply domains, brown-out detection.

Memories: permanent vs volatile

• Non-volatile memory (FLASH/ROM): retains the program when powered off. This is the “permanent memory” holding the firmware.

• Volatile memory (RAM): loses data when powered off. Used for variables, stack, communication buffers, and temporary runtime data.

• Other possible memories: EEPROM (or EEPROM emulation in FLASH) for parameters that must persist but are updated occasionally (calibration, IDs, configuration).

INPUT/OUTPUT: what it really means

INPUT/OUTPUT channels are not only “pins that read or write 0/1”. In a modern MCU, most pins are multiplexed: the same pin can be GPIO or a peripheral signal (e.g., UART TX/RX, SPI MOSI/MISO/SCK, ADC input, PWM output). This provides flexibility but requires careful configuration of port registers and alternate functions.

Why an MCU differs from a “classic” CPU/MPU

• An MCU is oriented to real-time control, often with frequent interrupts and tightly integrated peripherals.

• An MPU is oriented to general-purpose performance and complex systems (typically with external RAM, mass storage, high-speed interfaces, and often a full OS).

• An MCU tends to run bare-metal firmware or lightweight RTOS; an MPU tends to run heavier operating systems (Linux-like) when needed.

Sketch of the most important connections

                 ┌──────────────────────────────────┐
                 │          MICROCONTROLLER (MCU)    │
                 │                                  │
                 │  ┌─────────┐   ┌──────────────┐  │
Power ───────────►  │ Clock/  │   │   CPU Core    │  │
Reset/WDG ───────►  │ Reset   │   │ + Interrupt   │  │
                 │  └─────────┘   └──────┬───────┘  │
                 │                       │           │
                 │  ┌──────────────┐     │           │
                 │  │ FLASH / ROM  │◄────┘           │
                 │  └──────────────┘                 │
                 │  ┌──────────────┐                 │
                 │  │     RAM      │◄────────────────┘
                 │  └──────────────┘
                 │
                 │  Peripherals:
                 │  GPIO ──► digital sensors/actuators
                 │  TIMER/PWM ──► motors, LEDs, power control
                 │  UART/SPI/I2C ──► modules, sensors, displays
                 │  ADC/DAC ──► analog signals (if present)
                 └──────────────────────────────────┘

Typical advantages

• Integration: fewer external components, simpler schematic.

• Lower power: sleep modes and peripherals optimized for low-power.

• Cost and size: shorter BOM and simpler PCB.

• Reliability: fewer external interconnects and fewer failure points.

• Determinism: interrupts and timers suited to real-time control.

Typical limitations

• Limited resources: RAM and FLASH are often small compared to MPU systems with external memory.

• Performance: the CPU is often less powerful than a dedicated MPU (class-dependent).

• Peripheral constraints: number of channels and speeds are fixed by the chosen chip.

• Updates and debug: require toolchains and interfaces (SWD/JTAG) aligned with the device family.

Table 1 – Typical blocks inside a MICROCONTROLLER

Table 2 – Summary comparison: MICROCONTROLLER vs MICROPROCESSOR

Application examples

A MICROCONTROLLER is typical in: appliances, thermostats, IoT sensors, control units, motor control, instrumentation, embedded medical devices, keyboards/remotes, automotive subsystems (depending on requirements), and generally wherever reliable control is needed with constrained resources.
