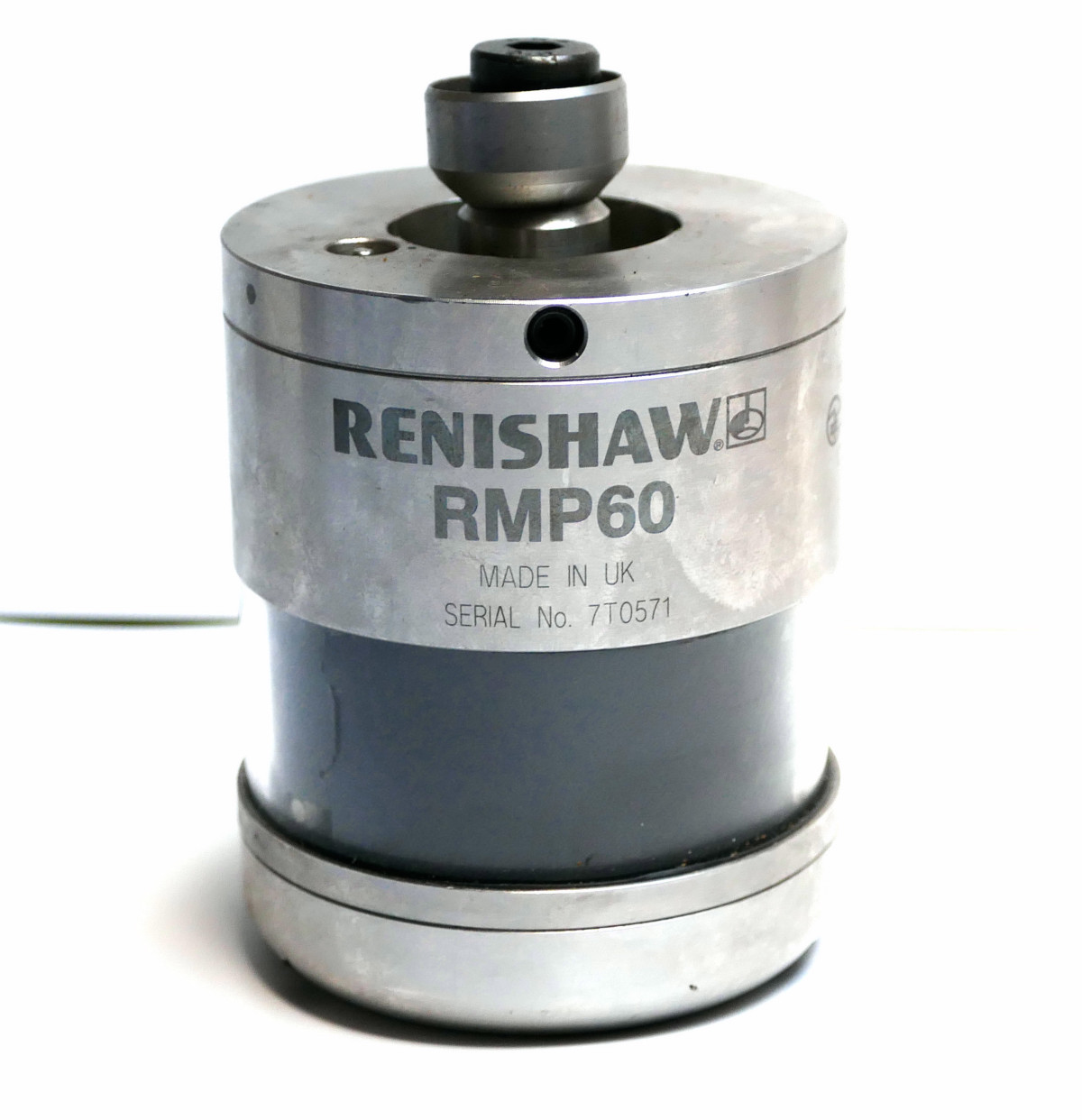

RMP60 radio transmission probe (renishaw.com)

The RMP60 radio probe is part of a series of new generation systems for part inspection by radio transmission and is particularly suitable for large machining centers where it is difficult to have a good line of sight between the probe and receiver.

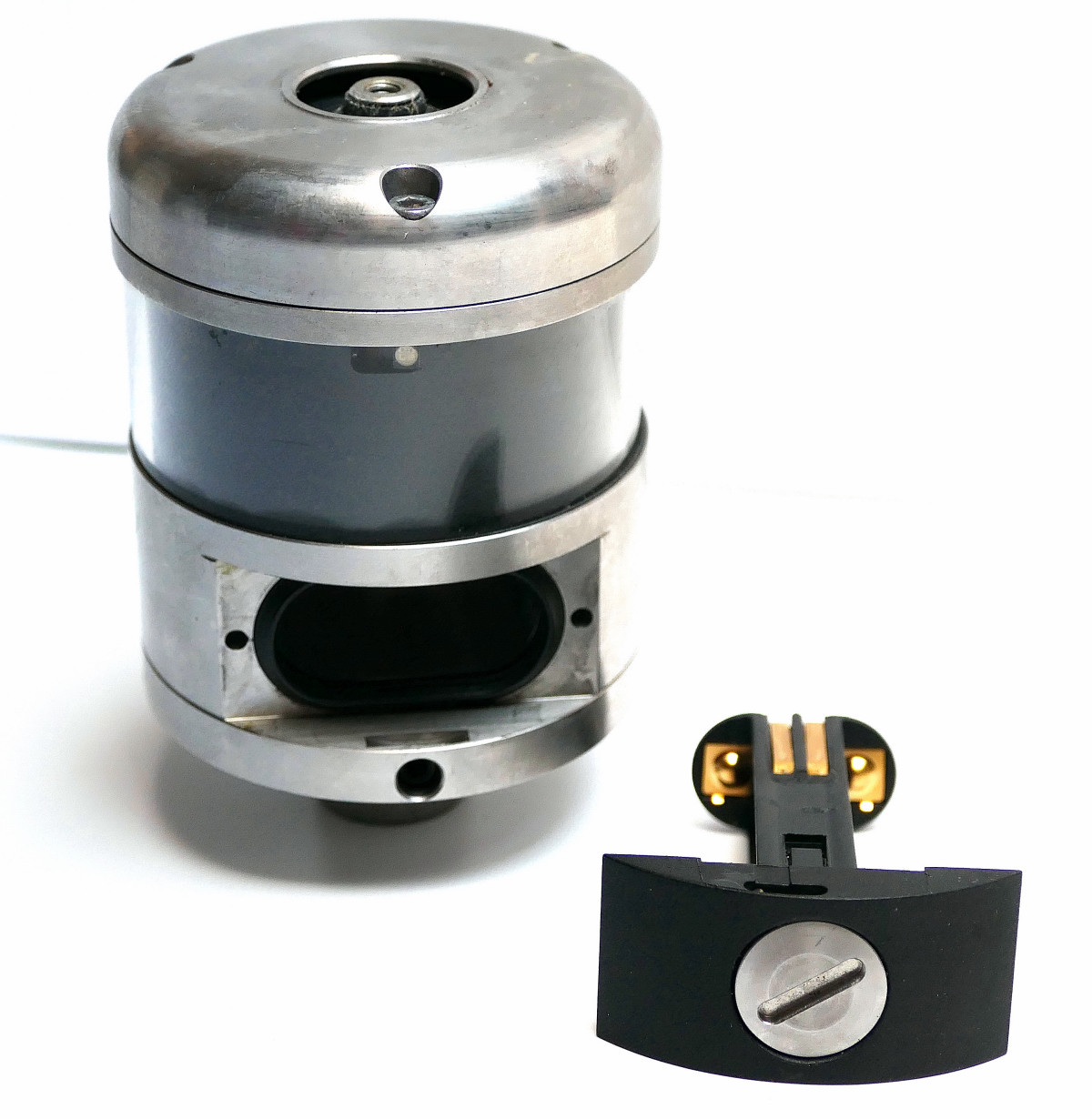

RMP60 utilizes an integrated probe module for maximum robustness and wide overtravel.

RMP60 complies with all worldwide standards and uses the 2.4 GHz band. Signal transmission is always clean, thanks to the adoption of frequency hopping spread spectrum (FHSS) technology, which makes it possible to use several systems simultaneously in the same workshop without risk of interference.

The RMP60 can be used alone or as part of a larger system that includes multiple radio spindle probes and/or tool setting systems, all controlled from a single interface.

All RMP60 probe settings are configured via "Trigger Logic™", a technique that allows the user to review and then change probe settings by deflecting the stylus and observing LED color sequences.

Configurable settings:

• On/Off method
• Trigger filter setting
• Hibernation setting
• Multiple probe mode
