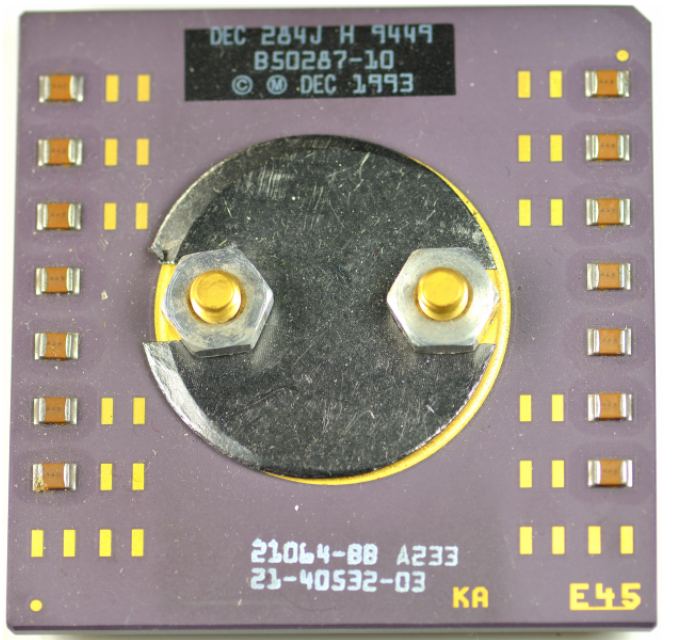

DEC 284J 2164-BB – CPU for the DEC Alpha system (Alpha AXP, 64-bit RISC), successor to VAX

Definition

The DEC 284J 2164-BB is identified as the CPU used in Digital Equipment Corporation’s Alpha systems, also known as Alpha AXP. Alpha AXP is a 64-bit RISC platform designed to succeed the VAX line, replacing a 32-bit CISC ecosystem with a more modern architecture aimed at high performance and scalability in workstation and server environments.

From a practical standpoint, “Alpha” should be understood as both an architecture and a family of microprocessors: the DEC 284J 2164-BB code is a component identification within that ecosystem, where the CPU sits at the center of a complete platform (chipset, memory, I/O, firmware) built for professional workloads.

Alpha AXP: 64-bit RISC and the paradigm shift from VAX

The transition from VAX to Alpha AXP brings several key points that matter at both design and software level:

• 64-bit RISC ISA: registers, addressing, and operations are natively 64-bit, with a model suited to large address spaces and high-performance computation.

• Explicit successor to VAX: Alpha was created specifically to replace the VAX platform, maintaining enterprise continuity (systems, tools, professional software) while changing the underlying architecture.

Operating systems: VMS and UNIX, plus Linux, BSD, and Windows NT

The Alpha platform was supported by multiple operating systems, with a strong professional focus:

• VMS (in the Alpha context often referred to as OpenVMS AXP).

• UNIX in the DEC/Alpha ecosystem (families such as OSF/1 AXP and later commercial naming).

• LINUX (multiple distributions had historical ports and support on Alpha).

• BSD UNIX (historical ports across several BSD branches).

• In the Microsoft ecosystem: Windows NT, with support ending after NT 4.0 (notable because it reflects a mainstream Windows port to a non-x86 architecture in that era).

Role of the component in an Alpha system: what “being the CPU” means

When a component is described as “the CPU of the Alpha system”, in practical terms it means:

• the CPU defines the ISA, and therefore the primary constraint for software, toolchains, and binary compatibility;

• the platform requires coherent firmware, chipset, and I/O (typically server/workstation-grade, not minimal embedded);

• application compatibility depends more on operating system availability and the compiler/library ecosystem than on the hardware alone.

Sketch of the most important connections

                 system bus / interconnect + platform control
        ┌──────────────────────────────────────────────────────────┐
        │        system controller / chipset (memory + I/O)         │
        │   arbitration, bridges, interrupts, DMA, bus interfaces   │
        └───────────────────────────────┬──────────────────────────┘
                                        │
                                        ▼
                           ┌─────────────────────────────┐
                           │        DEC 284J 2164-BB      │
                           │       CPU for Alpha systems  │
                           │       64-bit RISC architecture│
                           └─────────────┬───────────────┘
                                         │
                                         ├────────► RAM (platform memory subsystem)
                                         └────────► I/O (storage, networking, console, expansion bus)

Table 1 – Identification data and specifications

Table 2 – Operational and design considerations
