SY-A04 is a car tracker with dedicated OBD connector.
Power supply: 12-24 vcc.
The SY-A04 is a GPS tracking device that offers advanced features for monitoring vehicles, equipment, and other assets. This tracker is designed to provide precise and reliable tracking, suitable for both personal and professional use.
A key feature of the SY-A04 is its real-time tracking system. Users can monitor the exact location of the tracker through a mobile app or website, which is crucial for real-time movement monitoring and logistics management.
The device also includes geofencing functionality, allowing users to set virtual areas and receive notifications when the tracker enters or exits these zones. This feature is useful for vehicle security and asset management.
The SY-A04 is equipped with various alarm modes, including alarms for movement, speed, and low battery. These alarms provide users with timely alerts about any unusual activities or critical situations.
Another important feature is the route history recording, which enables users to view past routes and analyze movement patterns. This is beneficial for route optimization and analysis purposes.
Very good tracker at low cost via OBD connector.

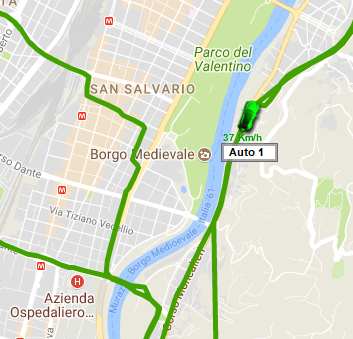

SY-A04 comes with a link to Google Map where you can check the vehicle in real time. The point on the map is established at the time of purchase and, for those traveling in the city, it is recommended 1 minute. Instead, for those traveling on the highway, 3 minutes are the right choice.

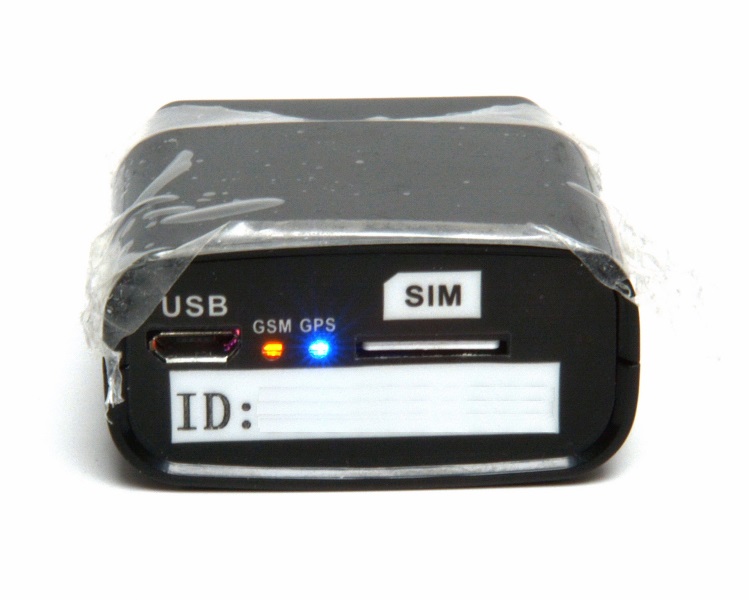

The front is very simple:
USB : To charge the internal battery when it is not connected to the OBD socket. Connected to the computer, the error "USB device not recognized" appears, but it is normal as it would require a specific program to communicate with the PC.
GSM: the yellow light warns that the connection with the SIM card is active and the tracker is correctly receiving the connection from the telephone operator.
GPS: the blue light signals that the connection with the satellites is active.
SIM
The tracker need a MINI SIM
Which SIM to buy.
The tracker sends only data packets, so a rechargeable SIM card with a € 3 per month is the most appropriate solution.
Additional costs
The tracking on the map is made via a dedicated server www.controllosatellitare.com at a cost of € 2 per month.
Map
The map options are professional and it would be too long to describe them all. I bring back the most important ones:
In real time :
- Nickname
- Serial number
- Date and time
- Address where the vehicle is located
- Tracker's battery status
- Motor On / Off - Doors closed / open - Shock - Vehicle empty / load
- Alarm
- Speed
- Fuel%
- Fuel Liters
- Kilometers traveled
- Temperature ° C
- GPS signal
- GSM signal
- Direction
- Longitude
- Latitude
History :
- Just write the month, day and time. The program plays the route on the map.
- Research is possible 6 months back.
Geo-fence
With this option it is possible to draw a virtual fence in an area of the map and the tracker warns if the vehicle has left the fence.
Report
To find information related to all the data recorded in real time. More :
- Trip Log Report
- Last position of the Report
- Historic photo Reports
- Passer-By Query Report
- Trips Park Report
- Limit park Report
- Driving report
- and more
DataManager
- Edit user data
- View current user privilege
- User another name manage
- User's notice message
- Sub-user manage
- Sub-user privilege manage
Setting
Asset Icon Color Definition :
- Green: moving
- Blue: iidling
- Gray: static
- Red: Alarm
- Yellow: invalid location
Stat Asset State:
- Assets number
- Monitoring number
- Non-monitor number
- Real time display number
- No Real time display number
- Valid position-Fix number
- InValid position-Fix number
- Alarms number
Server Connection Status:
- Sent data packs
- Received data packs
- Sent bytes
- Received bytes
- Login Time
- Logged
Conclusions.
The SY-A04 is a professional, low cost tracker dedicated to vehicles equipped with the OBD connector.
The battery, outside the OBD connector, works only a few hours.
The location is very accurate.
The informations on the map are professional and extremely detailed.
Small size.
Warning : check if the OBD connector on the vehicle is in a favorable position to receive the satellite signal.
