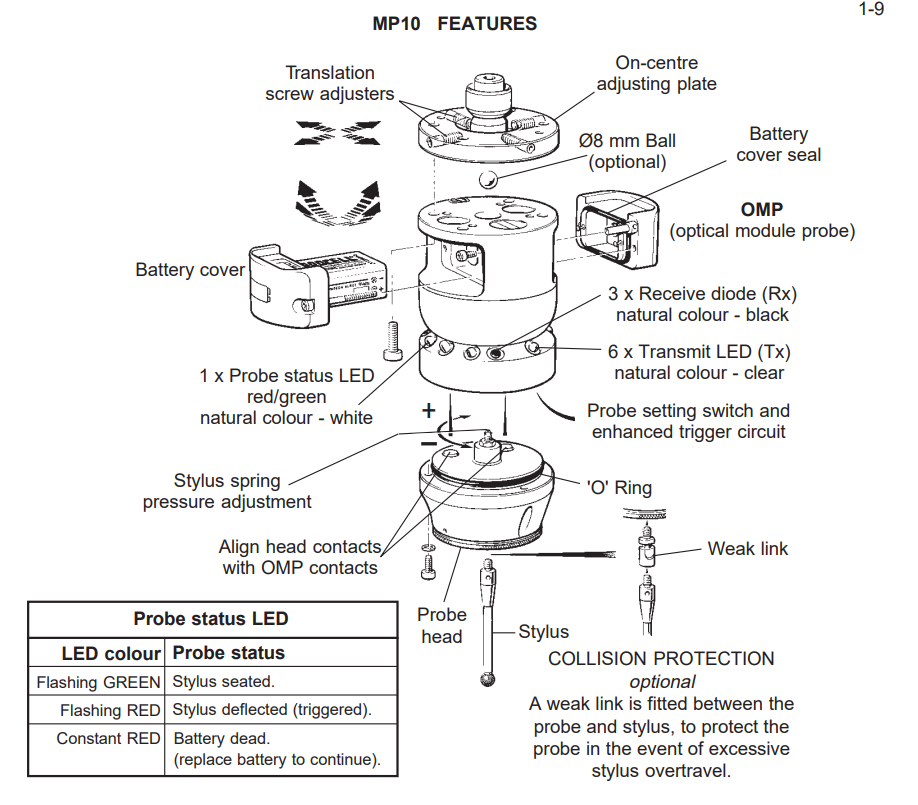

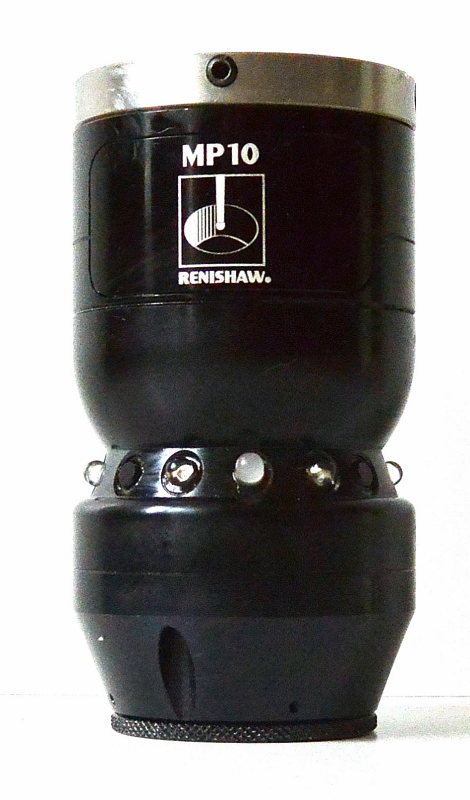

MP10 probe

The MP10 probe is used for workpiece set-up and inspection on CNC machining centres.

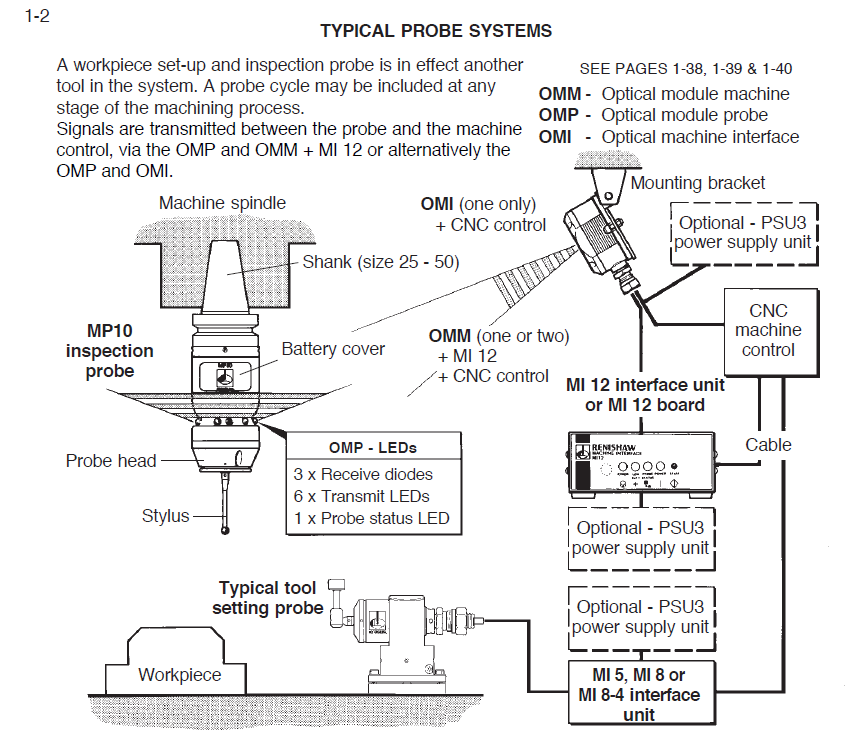

• OMM (optical module machine)
  Transmits CNC messages to the probe and receives data signals for transmission to the MI 12 interface.
• MI 12 interface unit
  Processes signals between the OMM and the CNC machine control.
• OMI (optical machine interface)
  An alternative to the OMM + MI 12 interface, combining the functions of both OMM and MI 12 in one unit.
  PSU3 power supply unit for MI 12 or OMI
  Used when 24 V supply is not available from the machine.
• Software for probe routines
  The MP10 is suitable for use with Renishaw single and double touch probing cycles.

System features

Signal transmission

The MP10 is available with either 35° or 70° output and features wide beam transmission - up to 130°.
Full 360° signal transmission and up to 6 m (19.6 ft) range.
Infrared optical filters reduce interference to data transmission.

Battery life
A battery life of 140 hours continuous use or the equivalent of 98 days at 5% usage is achievable.

Probe repeatability
Repeatability, 1.0 µm (40 µin) is certified at 480 mm/min (1.57 ft/min).

Probe switch-on
Probe switch-on is selectable between M code and auto start.
Probe, OMM and OMI sealing
Sealed to IP68 and designed for the machine tool environment.

Break protection
A stylus weak link is included in each kit, to protect the probe in the event of excessive stylus overtravel.
