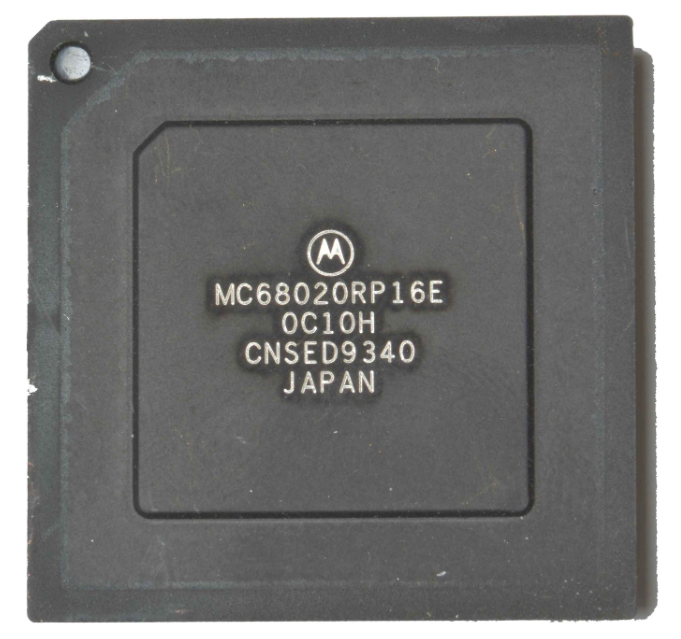

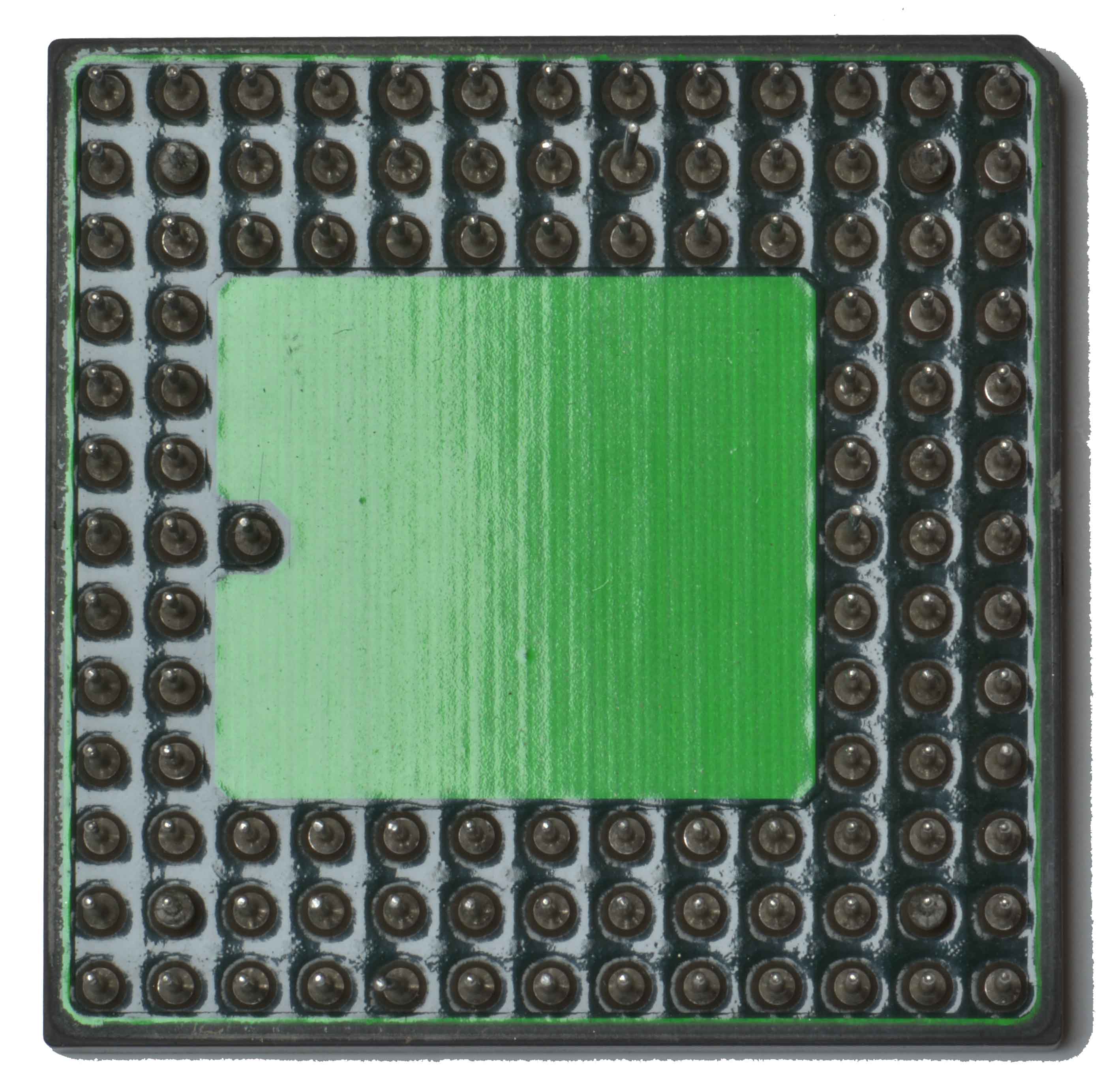

Motorola MC68020RP16E

The Motorola MC68020 is a 32-bit microprocessor in the M68000 family, introduced as a higher-performance evolution compared to earlier models and later replaced by the Motorola 68030. It is designed to preserve software continuity within the 68k ecosystem, but with a more “modern” architecture for its time: greater internal parallelism, an integrated instruction cache, and a more efficient system bus.

It was produced in several operating frequencies, typically from 12 MHZ up to 33.33 MHZ, with speed-grade selections including values such as 16.67, 20, 25, and 33.33 MHZ for the MC68020.

Compatibility and software model: continuity with M68000

Object-code compatible
The MC68020 maintains object-code compatibility with earlier M68000 microprocessors, meaning it can run existing 68k software without requiring a full rewrite. Practically, this reduces migration cost and enables progressive adoption on new platforms.

Addressing mode extensions for high-level languages
The processor introduces extensions to addressing modes to better support compilers and high-level languages. Practically, generated code can be more compact and require fewer “glue” instructions to handle data structures, stack frames, and complex addressing.

Data types and accelerations: bit fields for bit-oriented applications

New bit field data type
Support for bit fields accelerates bit-oriented operations, useful in applications such as video graphics, mask handling, packing/unpacking, and protocols. Practically, it reduces loops and software micro-routines needed to manipulate bit fields inside word/long values.

Cache and internal parallelism: pipeline and instruction cache

On-chip instruction cache
The MC68020 integrates an on-chip instruction cache. Practically, it reduces repeated external-memory accesses during loops and frequently executed routines, improving throughput when the code working set fits in cache.

Pipelined architecture and parallelism
The architecture is pipelined with a high degree of internal parallelism, allowing overlap of fetch/decode/execute phases and keeping multiple operations “in flight”. Practically, real performance depends on instruction flow, dependencies, and memory-subsystem speed—not only on clock frequency.

System bus: asynchronous, non-multiplexed, full 32-bit

High-performance asynchronous bus, nonmultiplexed, full 32-bit
The MC68020 bus is asynchronous, non-multiplexed, and full 32-bit. Practically, separating addresses and data (non-multiplexed) simplifies timing and reduces latch/control overhead compared to multiplexed buses, while asynchrony lets bus cycles adapt to the real characteristics of memories and peripherals.

Dynamic bus sizing
The processor supports dynamic bus sizing, meaning it can efficiently work with 8/16/32-bit memories and peripherals. Practically, a platform can mix devices of different widths without excessively penalizing the entire system, provided the bus design (decoding, wait states, transceivers) is coherent.

Virtual memory and coprocessors: external FPU and MMU

Full support of virtual memory and virtual machine
The MC68020 provides full support for virtual memory and “virtual machine” environments, typically via its exception architecture, protection mechanisms, and state handling designed for more structured operating systems.

Coprocessor interface to companion 32-bit peripherals
The processor includes an interface for coprocessors and companion 32-bit devices, in particular the Motorola 68881, Motorola 68882, and Motorola 68851. Practically, this enables pairing with an external FPU and a paged MMU for operating systems with protection and paging, keeping a modular platform approach.

Registers and control resources: 16 × 32-bit general-purpose registers and supervisor stacks

General-purpose registers
There are sixteen 32-bit general-purpose registers (data + address), improving code density and reducing memory traffic in compiled code and assembly.

Supervisor stacks and control registers
The processor includes two 32-bit supervisor stack pointers and five special-purpose control registers. Practically, this supports a clean separation between user and supervisor contexts (exceptions, interrupts, kernel), improving robustness and maintainability of complex systems.

Addressing modes and data types
The MC68020 supports 18 addressing modes and 7 data types, providing strong flexibility for compilers and data-movement optimization.

Address space: MC68020 vs MC68EC020

4 GB for MC68020
The MC68020 supports a direct addressing range up to 4 GB.

16 MB for MC68EC020
The MC68EC020 variant is specified with a direct addressing range up to 16 MB. Practically, it is aimed at more compact or cost-sensitive systems where the full 68020 address space is not required.

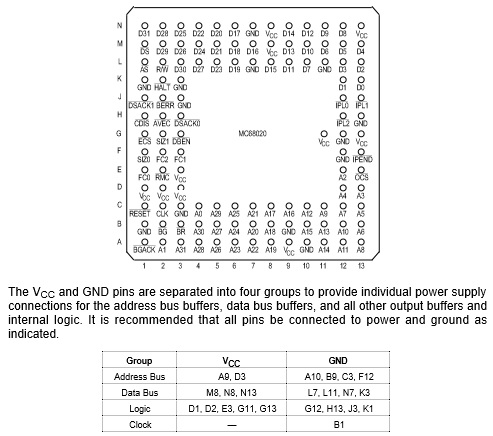

Sketch of the most important connections

                 32-bit asynchronous system bus (address/data/control)
        ┌──────────────────────────────────────────────────────────┐
        │              system controller / glue logic               │
        │  RAM/ROM, 8/16/32-bit I/O, arbitration, wait states       │
        └───────────────────────────────┬──────────────────────────┘
                                        │
                                        ▼
                           ┌─────────────────────────────┐
                           │        Motorola MC68020      │
                           │   on-chip instruction cache  │
                           │   pipeline and parallelism   │
                           │   32-bit non-multiplexed bus  │
                           └─────────────┬───────────────┘
                                         │
                                         ├────────► RAM/ROM (dynamic bus sizing)
                                         ├────────► I/O (8/16/32-bit peripherals)
                                         └────────► coprocessor interface (external FPU/MMU)

Table 1 – Identification data and specifications

Table 2 – Operational and design considerations
