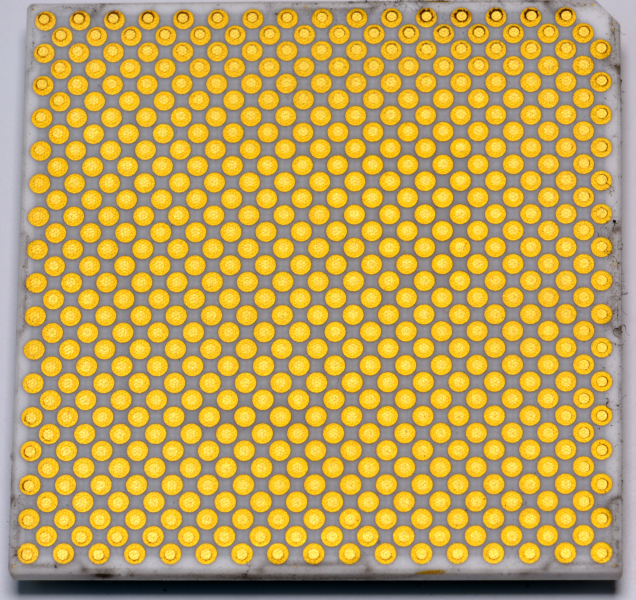

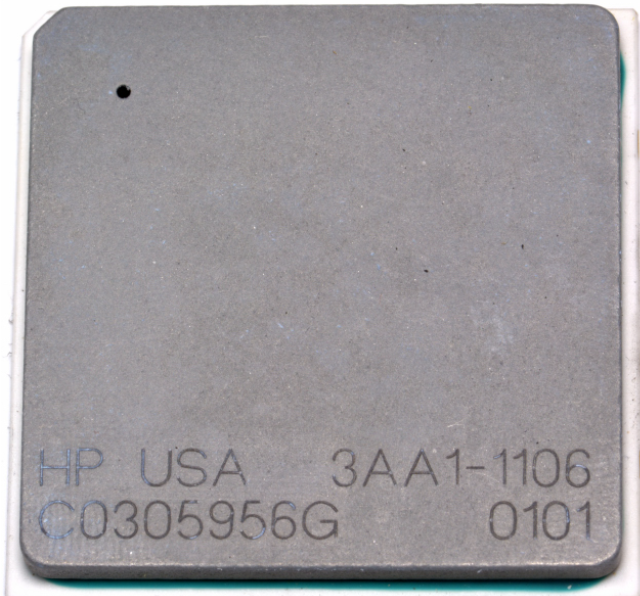

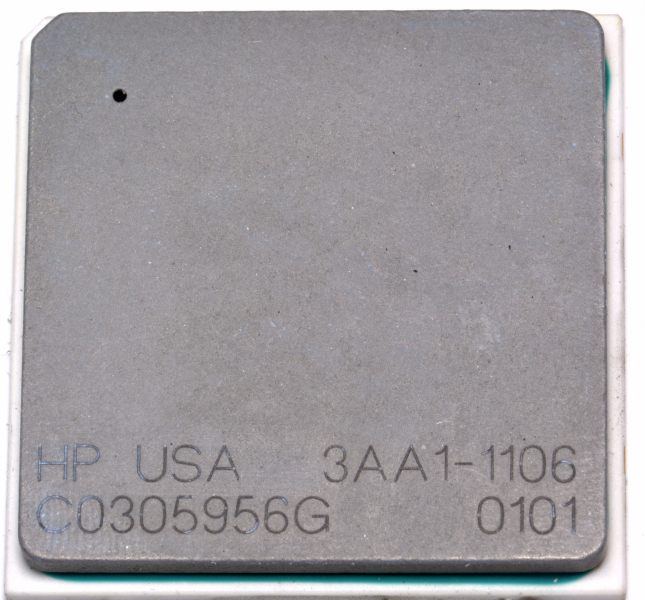

HP 3AA1-1106 “Landshark” – CPU for RISC PA-8600 (v2.0) 64-bit systems, with large on-chip L1 caches and a Runway DDR bus

Definition

The HP 3AA1-1106, code-named Landshark, is a CPU developed by Hewlett-Packard for PA-8600 RISC systems, conceptually an evolution of the PA-8500 with modifications aimed at sustaining higher operating frequency. Another major change concerns the cache hierarchy, with a more aggressive approach and a very large on-chip L1 footprint.

The PA-8600 2.0 version is described as a 64-bit platform and integrates architectural resources focused on high throughput: superscalar issue, many functional units, advanced branch prediction, and a high-bandwidth memory subsystem via the Runway bus.

Evolution from PA-8500: frequency and cache

A “PA-8500-like” design with changes for higher clocks typically translates into two practical design outcomes:

• Greater attention to the internal pipeline and power/clocking in order to sustain higher frequencies.

• Rebalancing of the cache subsystem, with very large on-chip L1 to reduce pressure on main memory and improve performance stability under server workloads.

Execution architecture: 4-way superscalar and 10 functional units

The PA-8600 2.0 is described as 4-way superscalar, meaning it can issue/handle multiple instructions per cycle when the instruction stream and dependencies allow it. The internal organization includes 10 functional units:

• 2 integer ALUs

• 2 shift/merge units

• 2 complete load/store pipelines

• 2 floating-point multiply/accumulate units

• 2 floating-point divide/square-roots units

Practically, this unit mix is meant to sustain parallelism on mixed code (integer, memory, floating point), reducing bottlenecks when the compiler and workload expose enough ILP (instruction-level parallelism).

Two address adders are also specified, helping compute addresses in parallel and feed load/store pipelines more effectively.

Front-end and control flow: TLB, BTAC, BHT, branch prediction

The control-flow subsystem includes:

• A 160-entry fully-associative, dual-ported TLB

• A 32-entry BTAC

• A 2048-entry BHT

• Dynamic and static branch prediction modes

Practically, a large, highly associative TLB reduces translation misses (especially with large working sets), while BTAC/BHT and mixed prediction help limit pipeline bubbles caused by branches and calls, which strongly affect real performance on superscalar designs.

Queueing and reordering: instruction queue / reorder buffer

A 56-entry instruction queue / reorder buffer is specified. Operationally, this resource helps:

• Absorb memory latency and temporary dependencies while keeping instructions “in flight”.

• Improve superscalar effectiveness when reordering and out-of-order completion opportunities exist (as supported by the platform’s microarchitecture).

On-chip caches: very large L1, set-associative, 32/64-byte lines

The PA-8600 2.0 integrates on-chip L1 caches with the stated sizes:

• 0.51 MB instruction cache (I), 4-way set associative

• 1 MB data cache (D), 4-way set associative

• Selectable cache line size 32 or 64 bytes

Also stated:

• Quasi-LRU replacement policy for the instruction cache

Practically, L1 caches of this size significantly reduce main-memory traffic and improve predictability on server workloads, while associativity and replacement policy limit conflicts and thrashing on less regular access patterns.

Memory and system bus: Runway 125 MHZ, 64-bit, DDR, ~2 GB/s peak

The system/memory link is based on Runway, with:

• 125 MHZ, 64-bit, DDR

• A stated peak bandwidth of about 2 GB/s

Practical implication: the bus is intended to keep the CPU fed in scenarios where L1 is insufficient (large datasets, heavy I/O, multiuser workloads), reducing wait time in the load/store pipelines.

Support for up to 1 TB of physically addressable memory is also specified, consistent with enterprise-class positioning.

Extensions and compatibility: MAX-2 and bi-endian

MAX-2 multimedia extensions
MAX-2 extensions are present for multimedia applications, with MPEG decoding given as an example. Practically, this implies instruction paths intended for vector-like or repetitive media-processing patterns, reducing cycles versus purely scalar routines.

Bi-endian support
Bi-endian support enables operation in little-endian or big-endian mode, useful in heterogeneous environments, migrations, and compatibility with software or devices that assume a specific endian format.

Frequency and voltage: up to ~550 MHZ at 2.0 V

A frequency of up to about 550 MHZ is specified with a 2.0 V core voltage. Practically, achieving such clocks also depends on thermal design and the overall platform (board, power delivery, chassis), in addition to the specific stepping.

Deployment systems

The PA-8600 (Landshark) CPU/platform is indicated as used in:

A400-5X
B2000, B2600
C3600
J5600, J6000, J7600
L1000-5X, L2000-5X
L1500-5X, L3000-5X
N4000-5X
V2600
Superdome
Stratus Continuum 439, 449, 651-2, 1251-2, 1252-2 (Stratus Technologies platforms)

Sketch of the most important connections

                 server/workstation platform (RAM, I/O, backplane)
        ┌──────────────────────────────────────────────────────────┐
        │           system controller + memory + I/O                │
        │     RAM (up to 1 TB), storage, network, interrupts        │
        └───────────────────────────────┬──────────────────────────┘
                                        │ Runway 64-bit DDR bus
                                        │ 125 MHZ ~2 GB/s peak
                                        ▼
                           ┌─────────────────────────────┐
                           │        HP 3AA1-1106          │
                           │        “Landshark”           │
                           │        PA-8600 v2.0 64-bit    │
                           │        L1 I 0.51 MB + D 1 MB  │
                           └─────────────┬───────────────┘
                                         │
                                         ├────────► load/store pipelines (2 complete)
                                         └────────► integer and FP units (10 FUs)
