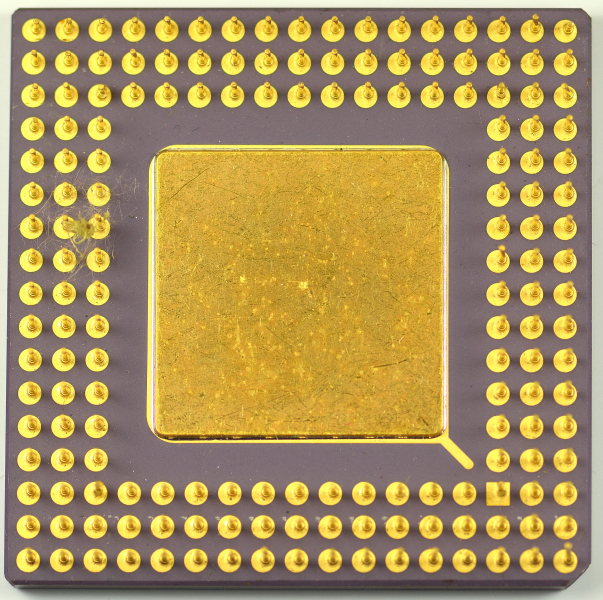

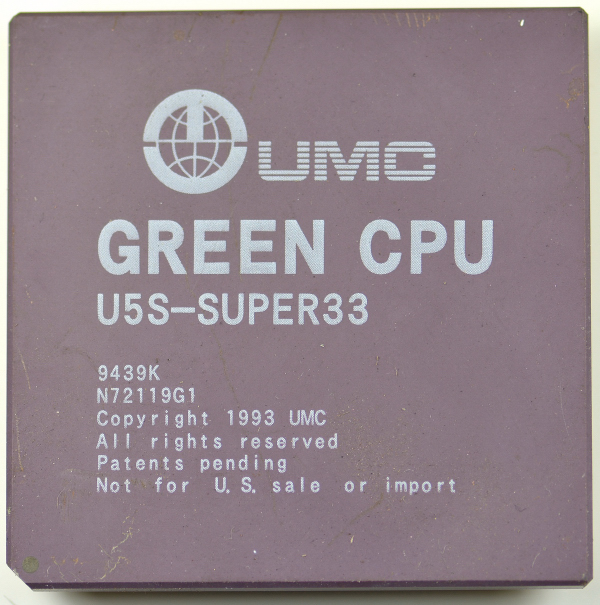

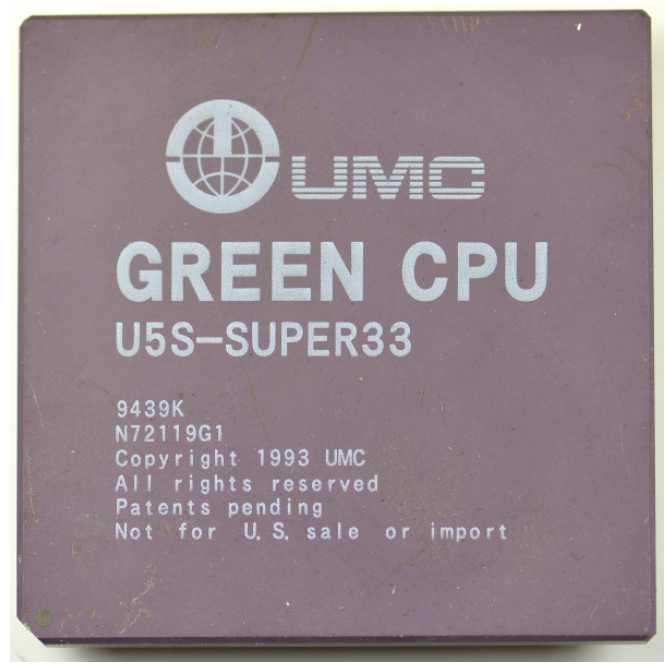

UMC U5S-SUPER33

The UMC U5S-SUPER33 is a 486-class CPU introduced in 1993 by United Microelectronics Corporation (UMC). It is described as a “fast” 486 with reduced power consumption compared to contemporary Intel CPUs, therefore aimed at delivering a strong performance/thermal balance on standard 486 platforms.

In practice, it is a processor intended for 486 motherboards where x86 compatibility matters, with period-typical specifications: 33 MHZ clock, 5 V supply, 0.6 micron process, and 8K L1 cache.

Context (1993): why an “alternative” 486 made sense

In 1993 the 486 market was highly competitive. For PC manufacturers and system builders, a 486-compatible CPU with good performance and a better power profile could mean:

• lower costs on the same platform

• more flexibility for cooling and board layout

• the ability to build value systems without sacrificing too much responsiveness

Clock: 33 MHZ

Clock: 33 MHZ
A 33 MHZ speed grade is typical for entry/mid-range 486 platforms. In practice:

• performance and responsiveness depend heavily on the chipset and RAM

• systems with well-configured external cache often feel faster than the raw clock suggests

• stability at 33 MHZ is generally easier to guarantee on 5 V boards than at higher frequencies

Supply: 5 V

Voltage: 5 V
A 5 V supply is consistent with many 486 motherboards of the era. Operationally:

• it simplifies integration on “legacy” platforms (less complex regulation)

• it requires attention to overall system thermals, especially in poorly ventilated cases

• it makes comparison straightforward versus many contemporary 5 V Intel 486 CPUs

Process: 0.6 micron

Micron: 0.6
A 0.6 µm process is typical of early 486-generation manufacturing nodes. In practice:

• it limits density and maximum achievable frequencies versus later nodes

• it influences power and heat, which is why “low power” optimization is a meaningful positioning point

L1 cache: 8K

L1 cache: 8K
An 8K L1 cache is a key parameter on a 486-class CPU: it reduces main-memory accesses on small/medium working sets and improves responsiveness on frequently reused code and data. In practice:

• it helps on “desktop” workloads of the era (DOS/Windows, utilities, light applications)

• final results still depend on the rest of the platform: motherboard L2 cache, RAM timings, and chipset behavior

Practical impact: performance vs power

The “fast and lower power” description versus Intel CPUs should be read as market positioning where:

• at the same clock (33 MHZ), the CPU aims to deliver strong perceived performance

• lower power can translate into simpler cooling, better thermal stability, and the ability to use less aggressive cooling solutions

On 486 platforms this can be a real advantage, because cooling quality and electrical stability strongly affect long-term operation.

Sketch of the most important connections

                 486 chipset + RAM + I/O (motherboard)
        ┌──────────────────────────────────────────────────────────┐
        │  memory controller, BIOS/ROM, external cache (L2), I/O     │
        │  peripheral bus (ISA/VLB depending on system)              │
        └───────────────────────────────┬──────────────────────────┘
                                        │
                                        ▼
                           ┌─────────────────────────────┐
                           │      UMC U5S-SUPER33         │
                           │   486-class CPU @ 33 MHZ     │
                           │   5 V, 0.6 µm, 8K L1         │
                           └─────────────┬───────────────┘
                                         │
                                         ├────────► RAM/ROM (via chipset)
                                         └────────► I/O (peripheral bus)

Table 1 – Identification data and specifications

Table 2 – Operational and design considerations
