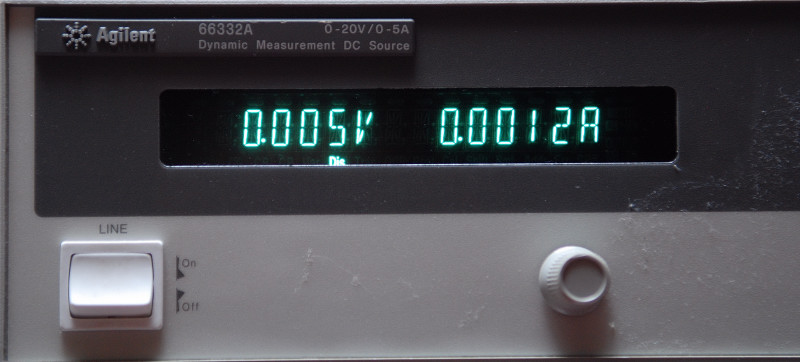

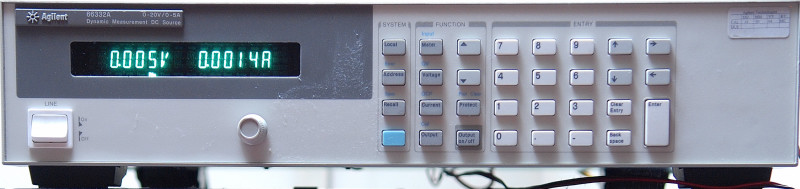

The Agilent 66332A is a 100 Watt, high performance dc power supply that provides dynamic measurement and analysis of voltage and current waveforms. It is designed to simplify the testing of digital cellular and mobile phones. For example, data acquired using its dynamic measurement capability can be used in determining the battery operating time of digital wireless communications products.

The Agilent 6631B/6632B/6633B/6634B are 100 Watt, high performance dc power supplies with output current measurement capability in the microampere range. They are well suited for testing portable battery-powered products.

Additionally, the combination of bench-top and system features in these dc sources provide versatile solutions for your design and test requirements.

Convenient bench-top features

• Up to 100 Watts output power
• Easy to use knob for voltage and current settings
• Highly visible vacuum-fluorescent front panel display
• Excellent load and line regulation; low ripple and noise
• Measurement capability down to microampere levels
• Current sinking up to the maximum rated output current
• Instrument state storage
• Portable case

Flexible system features

• GPIB (IEEE-488) and RS-232 interfaces are standard
• SCPI (Standard Commands for Programmable Instruments) compatibility
• Triggered acquisition of digitized output current and voltage waveforms (Agilent 66332A only)
• I/O setup easily done from the front panel
