Thermal imaging of skin changes on the feet of type II diabetics   K. Ammer, P. Melnizky, O. Rathkolb and E. F. Ring,  2001 Conference Proceedings of the 23rd Annual International Conference of the IEEE Engineering in Medicine and Biology Society, Istanbul, Turkey, 2001, pp. 2870-2872 vol.3.
doi: 10.1109/IEMBS.2001.1017387

Application of a commercially available thermal imager to a film-cooled panel temperature measurement    Meddings, T. J.; Wilson, C. W.
Proc. SPIE Vol. 1320, p. 262-273, Infrared Technology and Applications, Alan H. Lettington; Ed. October 1990
DOI:  10.1117/12.22331

Infrared thermography in the detection and management of coronary artery disease WilliamLawsonMD, DavidBenEliyahuMD, LindaMeinkenLPN, JosephChernilasMD, HowardNovotnyMD, PeterCohnMD, JohnDervanMD
The American Journal of Cardiology  Volume 72, Issue 12, 15 October 1993, Pages 894-896
https://doi.org/10.1016/0002-9149(93)91102-N

Thermal imaging in acute herpes zoster or post-zoster neuralgia.  Ammer K, Schartelmueller T, Melnizky P.
Skin Res Technol. 2001 Nov;7(4):219-22.

The quantitation of fIare response. E, Lang & A.Spitzer, & D.Pfannmüller, & Handwerker, Hermann & Neundörfer, Bernhard. (1995) The Thermal Image in Medicine and Biology,, Chapter: The quantitation of fIare response., Publisher: Uhlen Verlag, Wien,, Editors: K Ammer, E F J Ring, pp.146-149

Integrated Infrared Failure Analysis or Printed Circuit Boards  Miles, J., Zelak, C., Kliman, J., and Sunderland, J. E.
The Journal of Electronic Packaging. Accepted for publication, 1994.

Thermographic assessment of craniomandibular disorders: diagnostic interpretation versus temperature measurement analysis.  Gratt BM, Sickles EA, Ross JB, Wexler CE, Gornbein JA.
J Orofac Pain. 1994 Summer;8(3):278-88.

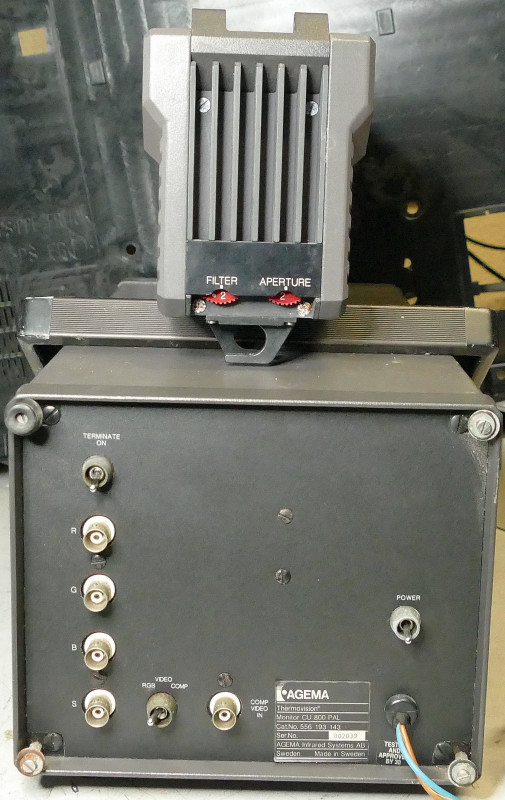

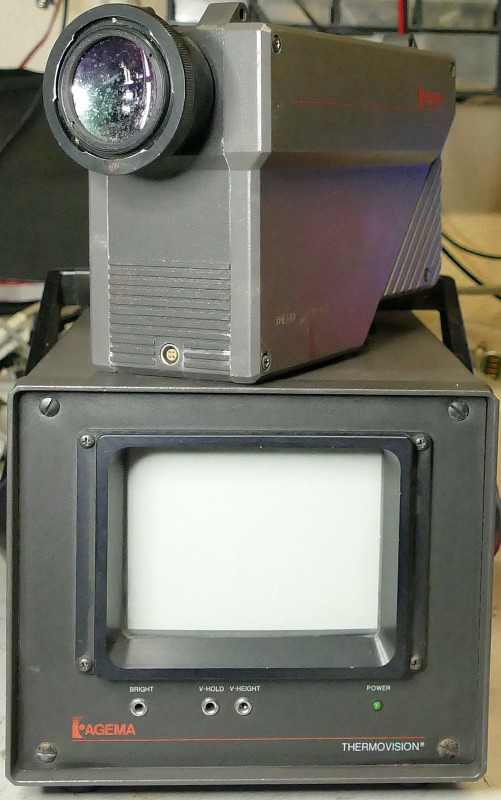

Agema Thermovision® 870 is designed for identifying hot-spots and malfunctioning components in electric power systems, examining industrial equipment and processes for heat losses, inspecting buildings or tracing leaks in heating systems and condition monitoring. Direct temperature read-outs are obtained from a microcomputer within the -20° to 500° C range.

Agema Thermovision® 870 uses a facet tracking system in which silicon or germanium lenses are used to focus the image into a mirror optic scanning system. Vertical scanning is produced by an oscillating aspherical mirror just behind the objective lens assembly. The reflected ray is folded by reflection from an aspherical mirror, a flat mirror and from three mirrors mounted on a component to have a single axis. Two of the mirrors are aspherical.

Horizontal scanning is accomplished by a ten-facet polygon mirror totated at 15.000 RPM. The high efficiency of the facet tracking system gives good response using a thermoelectrically cooled change in temperature. The polycrystalline detector must be poled to align the pyroelectric axis prior to use. (Poling is the process of cooling the crystal through its ferroelectric transition temperature under a DC field to align all domains in the same direction).

A television tube based on tryglycine sulfate in manufactured by Thomson CSF as Pyricon tube. The tube is sensitive to long wavelenghts so very low temperatures can be detected compared to other thermal imaging methods.

Agema Thermovision® 870 applications
