Bruel & Kjaer - 2825 Front End

Product Data

https://pearl-hifi.com/06_Lit_Archive/15_Mfrs_Publications/10_Bruel_Kjaer/02_Product_Data/2825_PULSE_Front-end.pdf

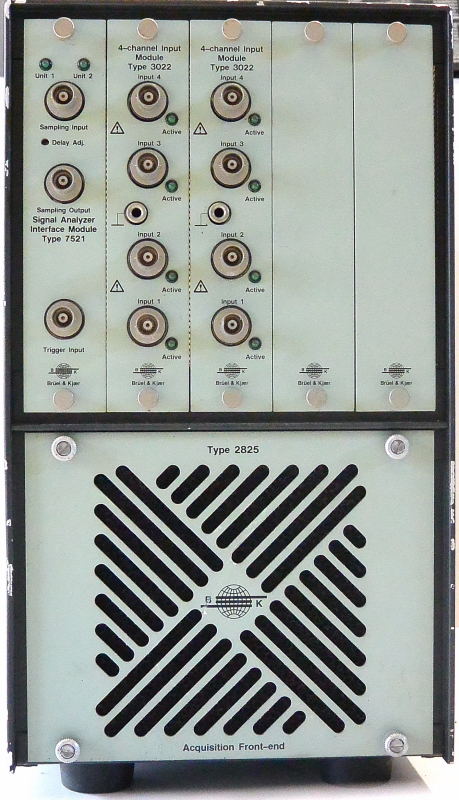

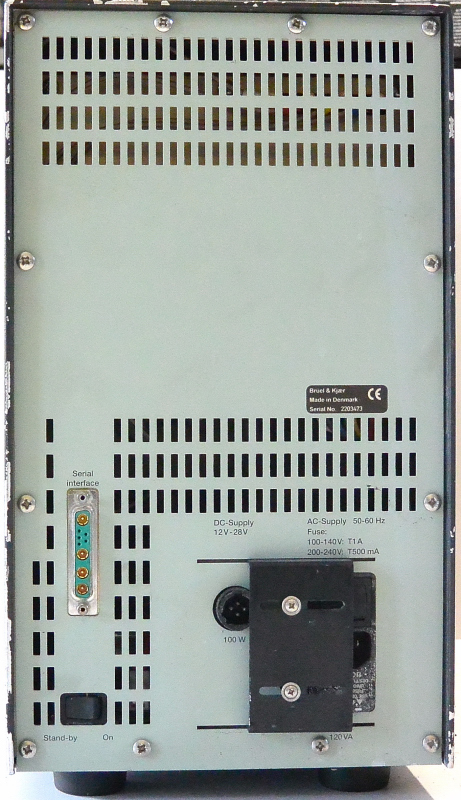

Part of PULSE, the Multi-analyzer System Type 3560, Acquisition Front-end Type 2825 is front-end frame, that has an AC power supply and back-plane wiring forn an interface module and up to 4 analogue input/output modules. This allows the connection of up to 16 analogue channels.

Type 2825 is connected to the TAXI-interface for the DSP Boards in your PC using coaxial cable AO0370.

Type 2825 houses input modules for Type 3560 multi analyzer system configurations. The unit can be transported, and is silent during operation.

USES:

• Front-end data acquisition frame for use in Type 3560 multichannel system configurations
• Housing an interface module and up to 4 input/output modules

FEATURES:

• Up to 4 input modules can be installed allowing measurements in up to 16 channels
• Up to 4 generator modules can be installed
• A sound intensity probe can be supported
• Signal output is available on up to 3 channels
• IEC 1010 Class I
