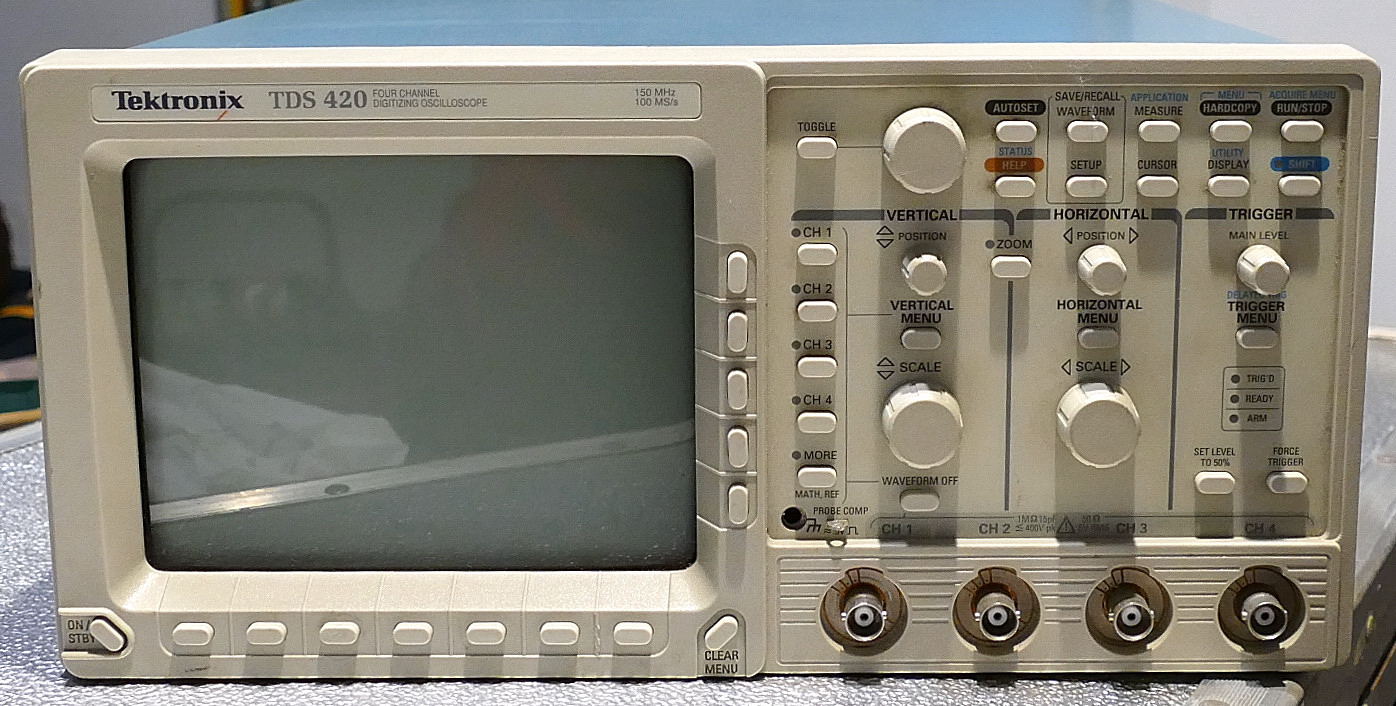

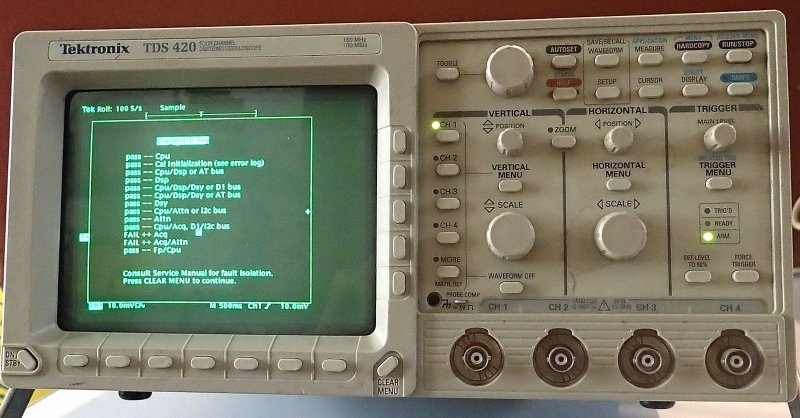

Tektronix TDS 420 150 MHz

Click image to enlarge

Manual

https://download.tek.com/manual/070803603.pdf

 Tektronix TDS 420

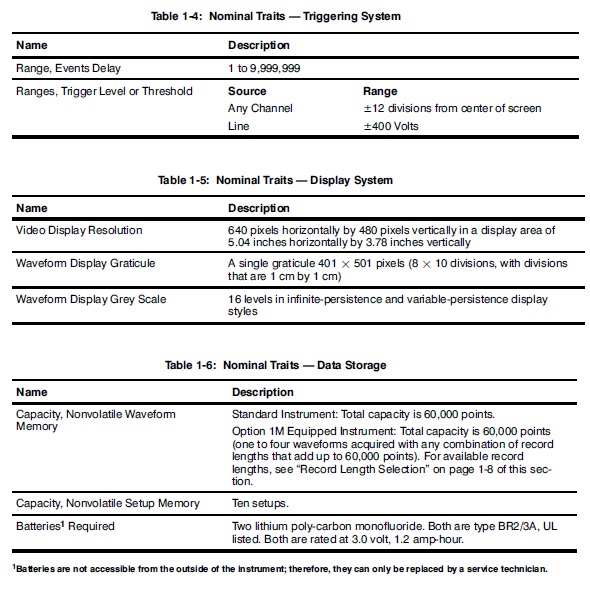

Features:

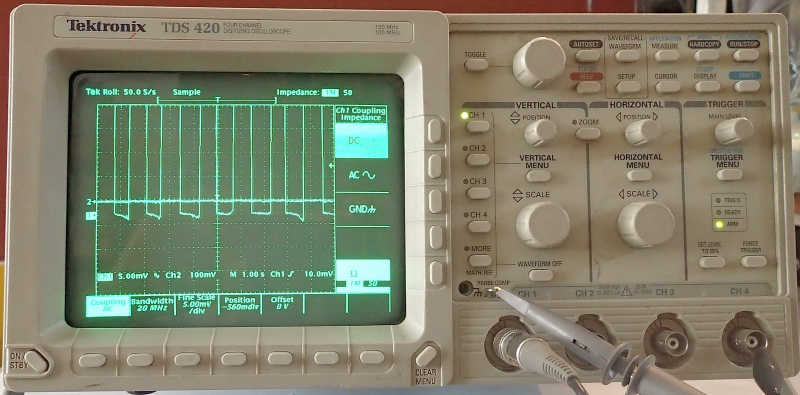

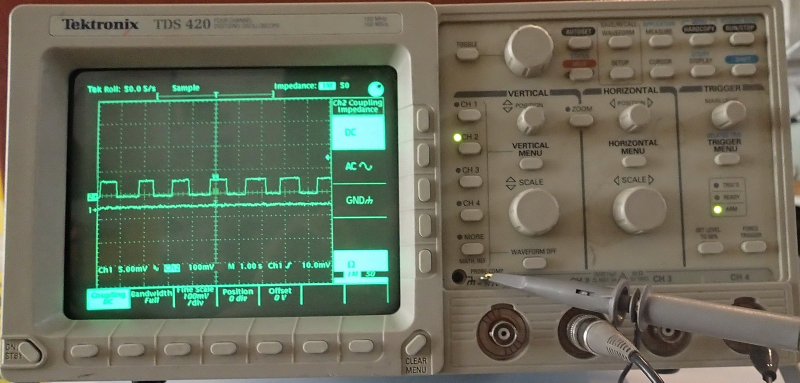

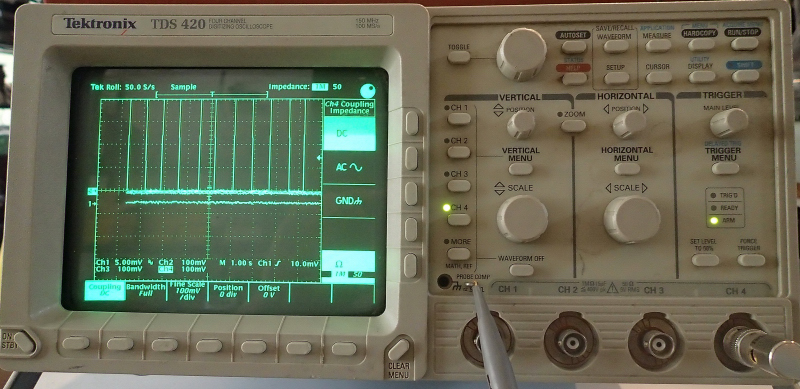

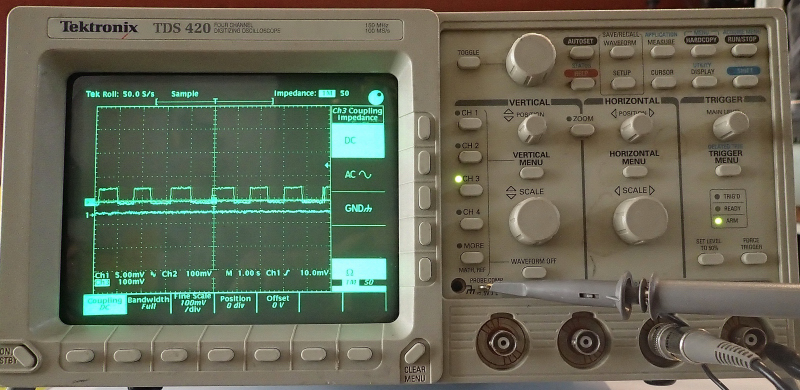

4 input channels each with a record lenght of 500 to 15.000 points and 8 bit vertical resolution.

Digitizing rate of 100 Megasamples/second. All channels acquire at the full analog bandwidth of 150 MHz

Input Resistance  Selections : 1MOhm or 50Ohm

Time division range : 1ns to 20s/div

Range, Sensitivity : 1 mV/div to 10 V/div

Range, Position : +/- 5 divisions

Number od digited Bits : 8 bits

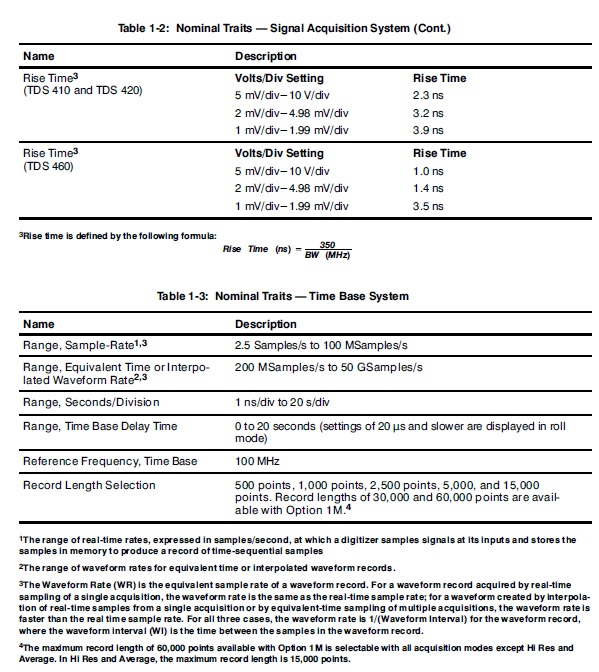

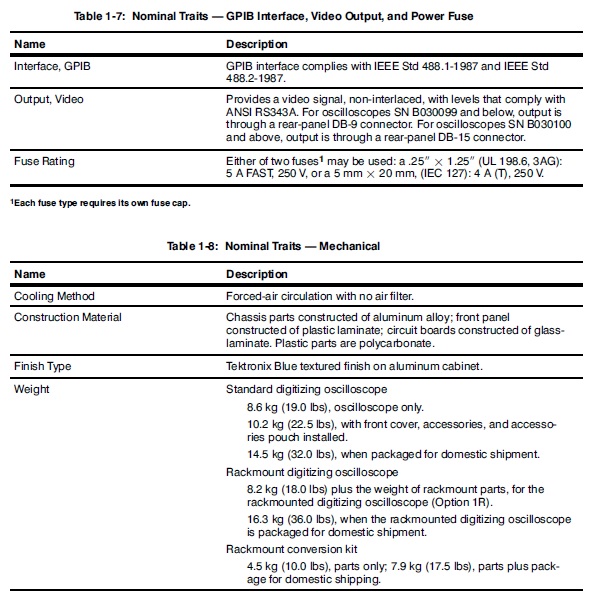

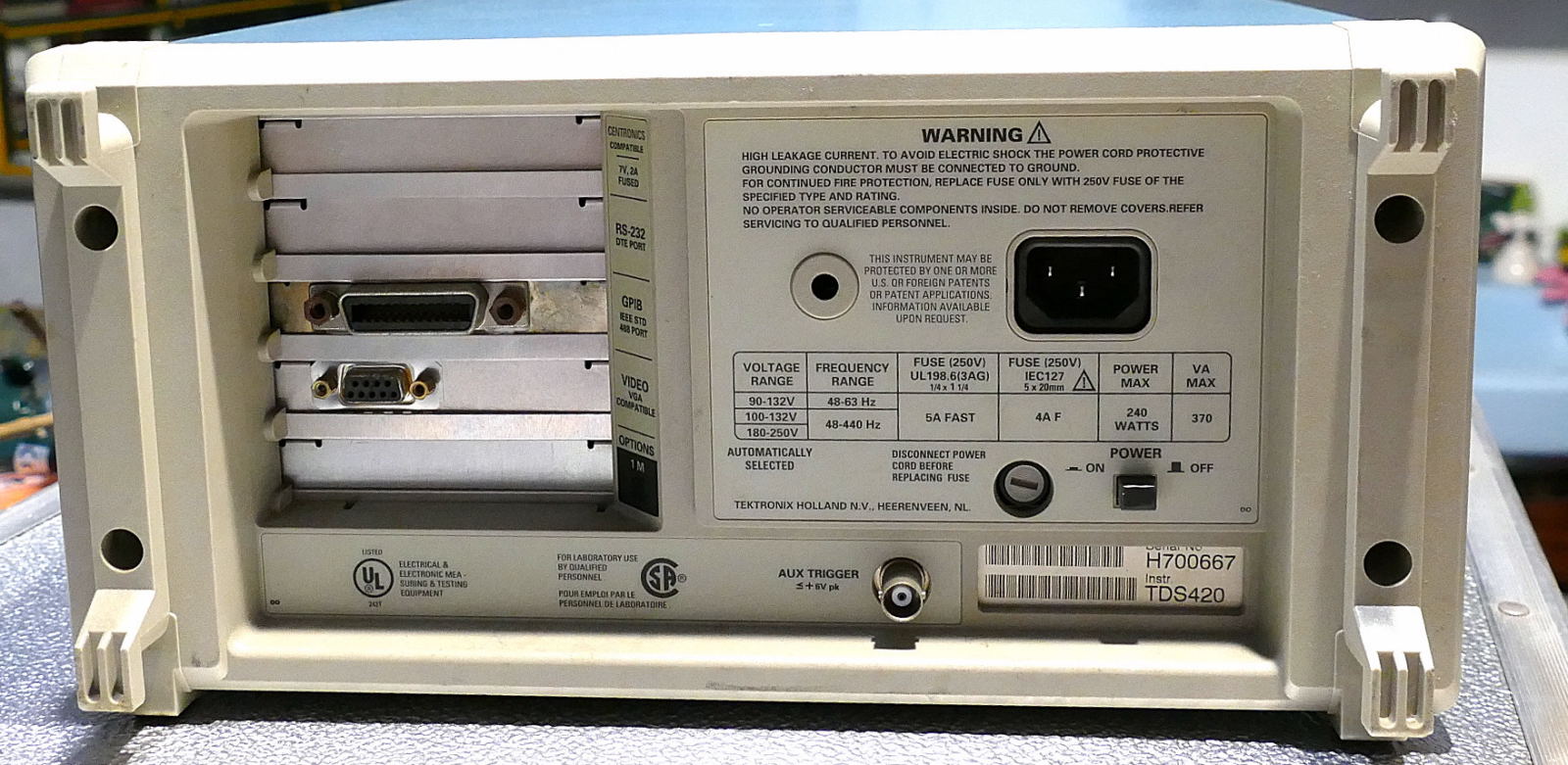

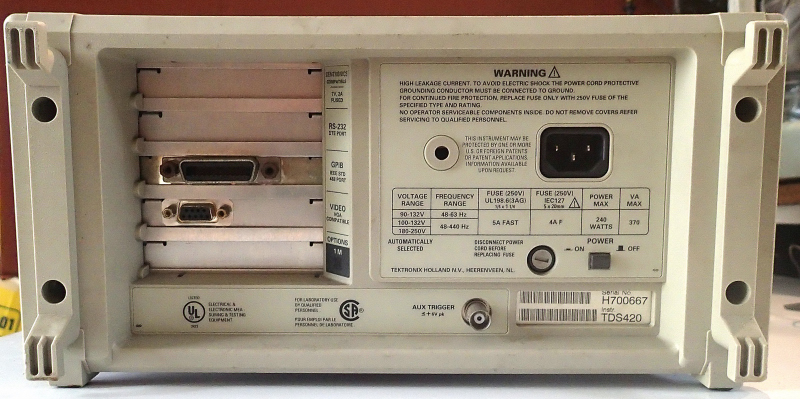

Interface : GPIB complies with IEEE 488 and IEEE 488.2-1987

• Height : 191 mm

• Width : 362 mm with handle

• Depth : 471 mm without cover

• Weight : 8,6 kg oscilloscope only
