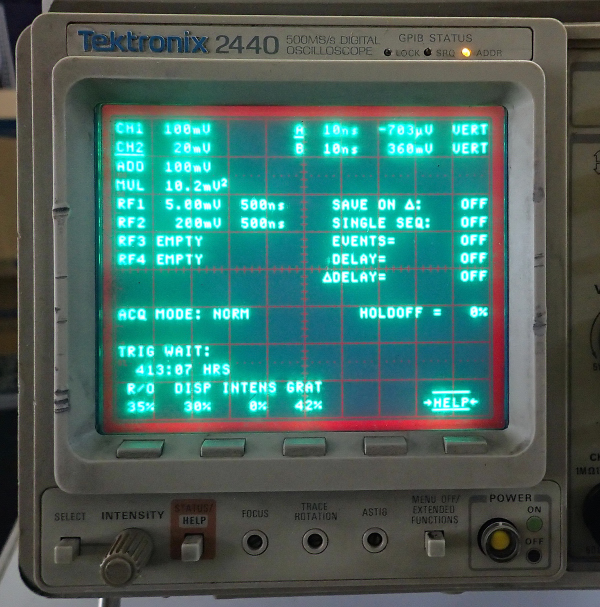

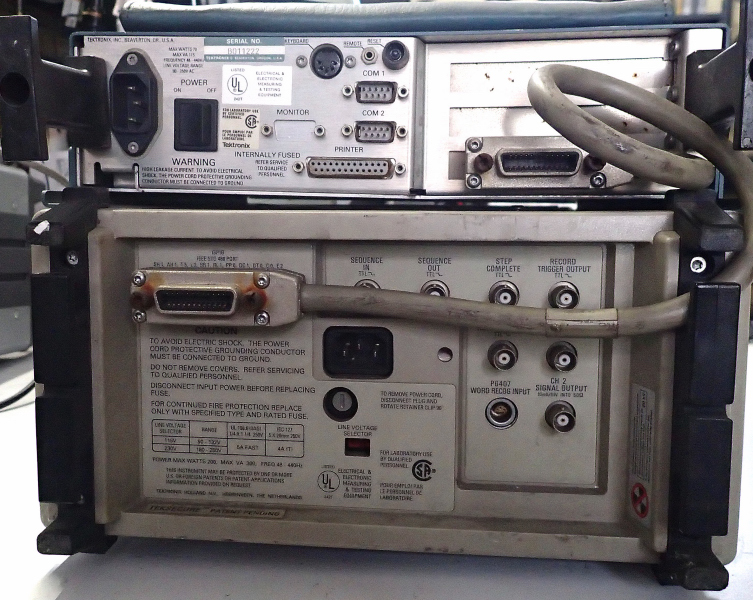

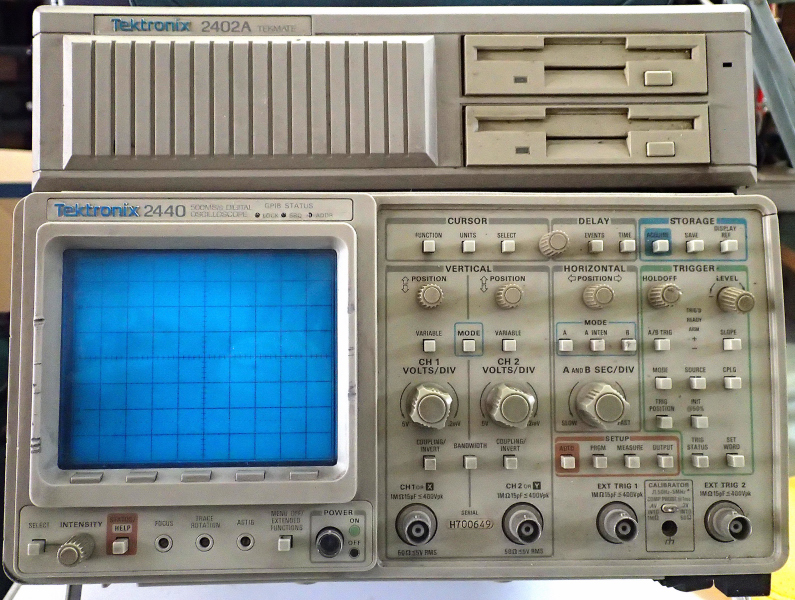

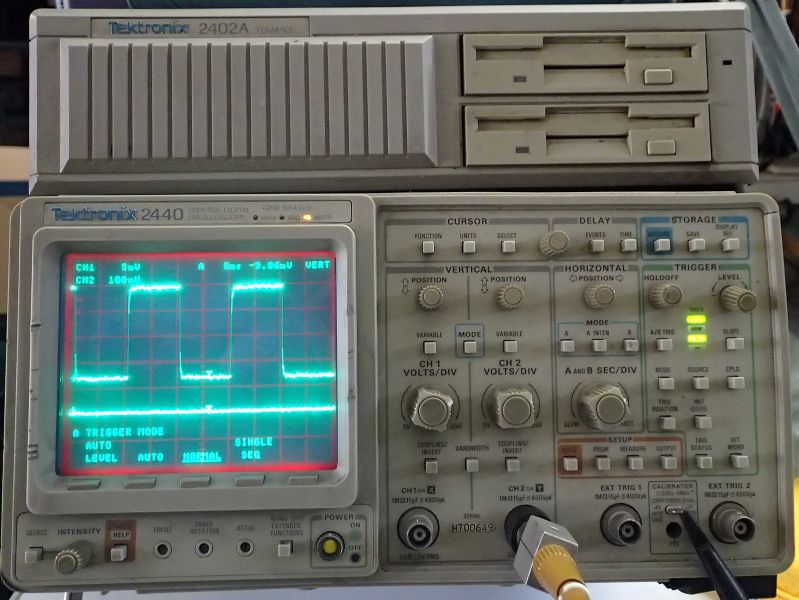

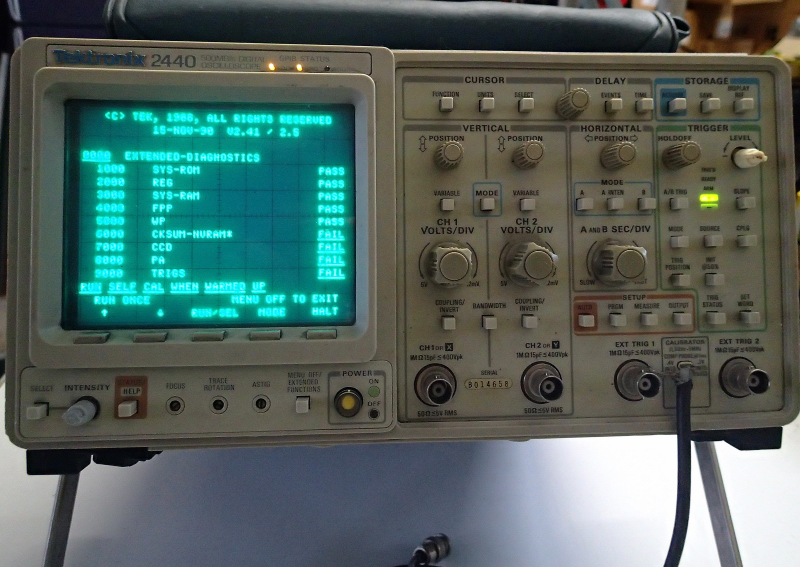

Oscilloscope Tektronix 2440

Bandwith : 300 MHz

Acquisition System

Sample Rate : 500 MSa/s
Memory Depth : 1024

Vertical System

Vertical Sensivity : 2 mV/div to 5 V/div
Rise Time : 1,17 ns
Input Impedance : 1 m
Vertical Resolution : 8 bit

Time Base System

Time Base Range : 2 ns/div to 5 s/div
Time Base Accuracy : +/- 0,002%

Dispaly size : 5 inch

(Read the full Tiiip)

0 pts from Radar

Evaluate

Where is this found?

Data locked by Frank123. You need 10 more points in this category to unlock

"Descrizione" about Tektronix 2440 300 MHz
by Radar (1992 pt)

2017-Sep-21 18:03

Oscilloscope Tektronix 2440 Bandwith : 300 MHz Acquisition System Sample Rate : 500 MSa/s Memory Depth : 1024 Vertical System Vertical Sensivity : 2 mV/div to 5 V/div Rise Time : 1,17 ns ...

Read the full Tiiip

(Send your comment)

Read other Tiiips about this object in __Italiano (1)

Brand: Tektronix

I.C.:

Last update: 2017-11-12 21:28:50

Function: Oscilloscope

Indicative price:
